新品推荐—EpiCypher重磅推出H3K36me2抗体（货号13-0056 ）

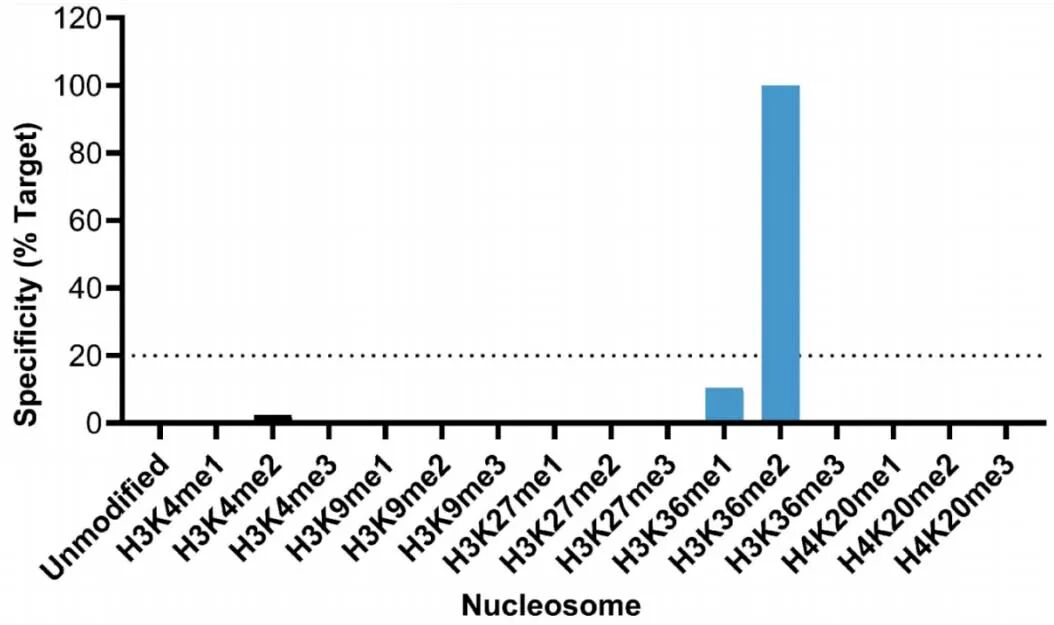

图1. SNAP specificity analysis in CUT&Tag. CUT&Tag was performed as described above. CUT&Tag sequencing reads were aligned to the unique DNA barcodes corresponding to each nucleosome in the K-MetStat panel (x-axis). Data are expressed as a percent relative to on-target recovery(H3K36me2 set to 100%). Dotted line represents the 20% cross reactivity threshold for SNAP-certification.

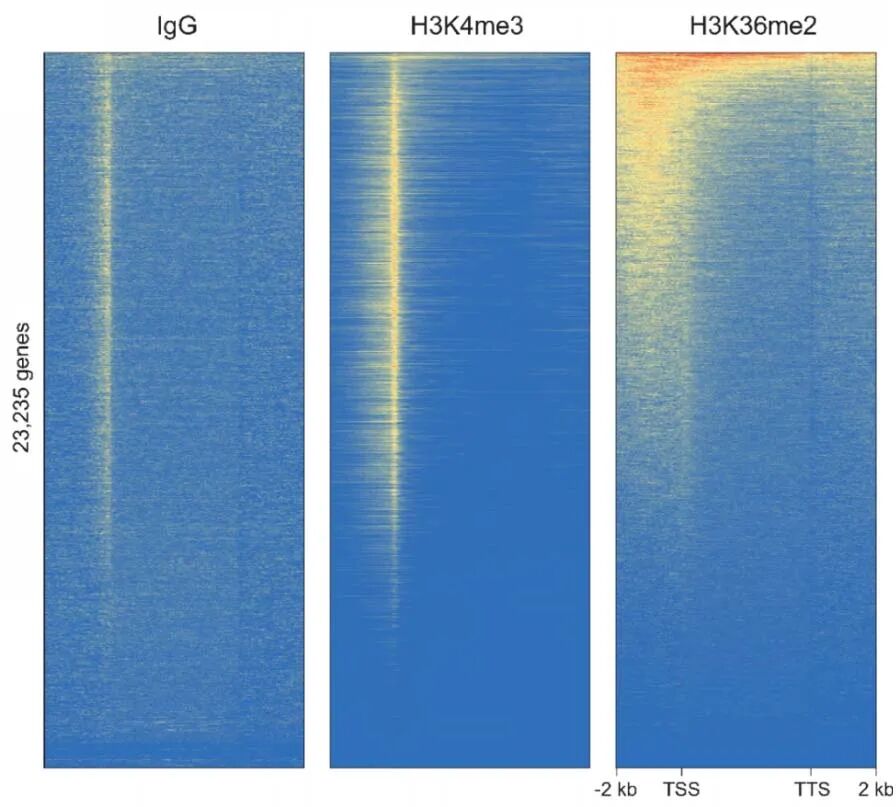

图2. CUT&Tag genome-wide enrichment. CUT&Tag was performed as described above. Sequence reads were aligned to 23,235 annotated genes and heatmaps were generated across gene bodies from TSS to TTS extending 2kbp upstream from the TSS and 2kbp downstream from the TTS. Signal enrichment was sorted from highest to lowest (top to bottom) relative to the H3K36me2 sample (all gene rows aligned). High, medium, and low intensity are shown in red, yellow, and blue, respectively. H3K4me3 positive control and H3K36me2 antibodies produced the expected enrichment patterns, which were higher than those observed with the IgG negative control.

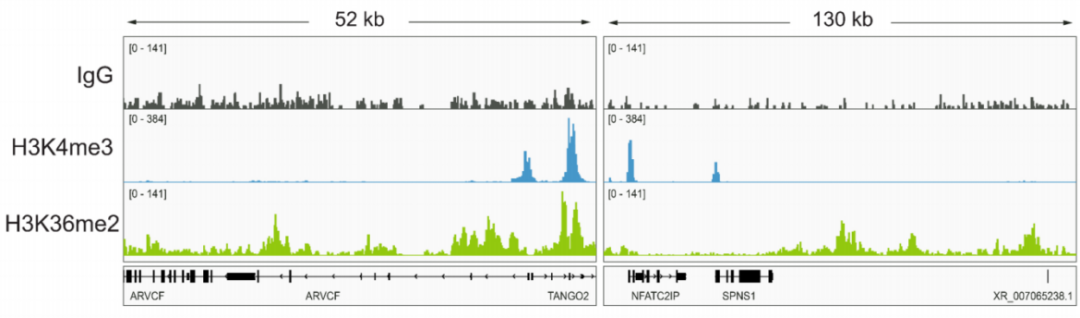

图3. H3K36me2 CUT&Tag representative browser tracks. CUT&Tag was performed as described above. Gene browser shots were generated using the Integrative Genomics Viewer (IGV, Broad Institute). H3K36me2 antibody tracks display the characteristic enrichment known to be consistent with the function of this PTM.
